GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End
  • Nombre

GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End

Cuota De Producción: 1 pcs
Precio: Negociable
Embalaje Estándar: Packed in carton firstly,and then reinforced with wooden case for outer packing
Período De Entrega: 3 working days after received your payment
Método De Pago: T/T or western Union or PayPal
Capacidad De Suministro: 3,000pcs per month
Detalles Información
Descripción del Producto
Información detallada
Place of Origin
China
Nombre de la marca
OEM
Certificación
ISO9001:2008
Model Number
GE140ES-2RS
Product Name:
GE140ES
Precision Rating:
ABEC1 ABEC3 ABEC5
Type:
Rod end
Material of the ball:
Chrome steel Gcr15
Inner diameter:
140mm
Outside diameter:
210mm
Thickness:
90mm
Resaltar:

chrome steel spherical plain bearing

,

140x210x90mm rod end bearing

,

GE140ES rod end bearing

Descripción del Producto
GE140ES-2RS Standard Duty Fractured Race Radical Spherical Plain Bearing GE140ES 140x210x90mm With Fitling Crack
Product Attributes
Attribute Value
Product Name GE140ES
Precision Rating ABEC1 ABEC3 ABEC5
Type Rod end
Material of the ball Chrome steel Gcr15
Inner diameter 140mm
Outside diameter 210mm
Thickness 90mm
Product Description

Rod end joint bearing GE140ES. GE..ES is a Plain Spherical Ball Bearing which is capable of withstanding both large radial loads as well as bi-directional axial loads at the same time. This GE..ES bearing incorporates an inner and outer ring with a spherical sliding surface and a single piece race type construction providing excellent ball-to-race conformity. This GE..ES can be re-lubricated through an annular groove in the outer race with two interconnecting holes positioned at 180 degrees and is ideal for applications using high shock loads and high alternating loads.

Specifications
Bore size 140mm
Outer size 210mm
Thickness 90mm
Bearing type radial spherial plain bearing
Seal type open bearing, sealed bearing 2RS
Material steel bearing
Grade industrial grade bearing
Precision p4 p5 p6 p0 abec5
Brand japan brand bearings
Technical Data
Designation d D B C Dynamic load (KN) Static (Kg) Weight
GAC25S 25 47 15 14 50 250 0.148
GAC28S 28 52 16 15 60 300 0.186
GAC30S 30 55 17 15 63 315 0.208
GAC32S 32 58 17 16 71 354 0.241
GAC35S 35 62 18 16 78 390 0.268
GAC40S 40 68 19 17 92 463 0.327
GAC45S 45 75 20 18 108 540 0.416
GAC50S 50 80 20 19 123 618 0.455
GAC55S 55 90 23 20 144 721 0.645
GAC60S 60 95 23 21 163 817 0.714
GAC65S 65 100 23 22 180 905 0.759
GAC70S 70 110 25 23 206 1030 1.04
GAC75S 75 115 25 24 220 1129 1.12
GAC80S 80 125 29 25.5 258 1290 1.54
GAC85S 85 130 29 26.5 284 1422 1.61
GAC90S 90 140 32 28 316 1580 2.09
GAC95S 95 145 32 29.5 350 1750 2.22
GAC100S 100 150 32 31 384 1923 2.34
GAC105S 105 160 35 32.5 423 2116 2.93
GAC110S 110 170 38 34 463 2318 3.68
GAC120S 120 180 38 37 547 2735 3.97

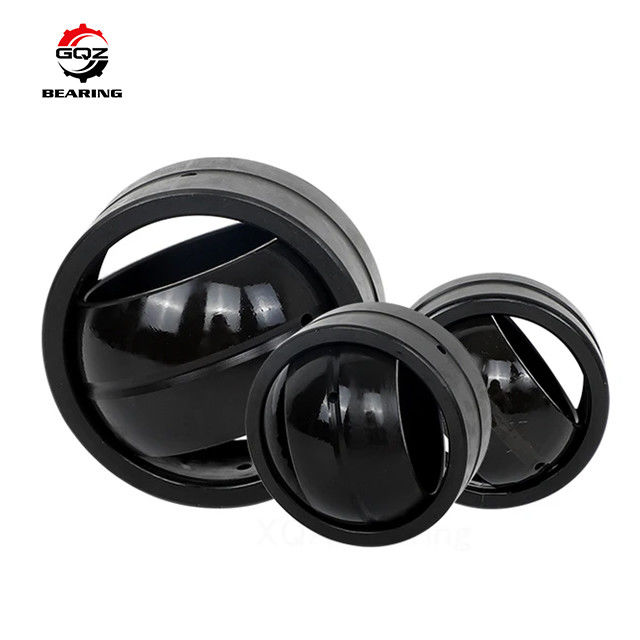

Product Images
GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End 0 GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End 1 GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End 2 GE140ES Spherical Plain Bearing 140x210x90mm Chrome Steel Rod End 3
Frequently Asked Questions
How do I ensure proper lubrication for Spherical Plain Bearings in high-load, low-speed applications?

Proper lubrication is critical for Spherical Plain Bearings, especially in demanding environments with heavy loads and minimal rotation. For these conditions, it's recommended to use a heavy-duty grease or oil that can withstand high pressures and resist washout. Regular re-lubrication intervals should be established based on the specific application's load, speed, and environmental factors. Consider using seals or protective caps compatible with your Spherical Plain Bearing design to prevent contamination and retain lubrication, thereby extending bearing life and performance.

What material options are available for Spherical Plain Bearings to handle corrosive environments?

To cope with corrosive environments, Spherical Plain Bearings are commonly offered in various corrosion-resistant materials. Standard options include stainless steel, which provides good general corrosion resistance, or for more severe conditions, bearings made from special alloys like duplex stainless steel or those with PTFE (polytetrafluoroethylene) liner materials can be utilized. These materials, particularly PTFE-based ones, offer low friction and excellent chemical resistance, making them ideal for marine or chemical processing industries where corrosion is a major concern.

Etiquetas:

transporte de desplazamiento esférico,

rodamientos esféricos métricos,

transporte esférico llano
